URL Validator

URL Validator validates the request params,path params and request body of the incoming request.

Configuration

1. Drag and drop URL Transformer from the pallet.

2. Right click on transformer, now you can define the URL Transformer configuration.

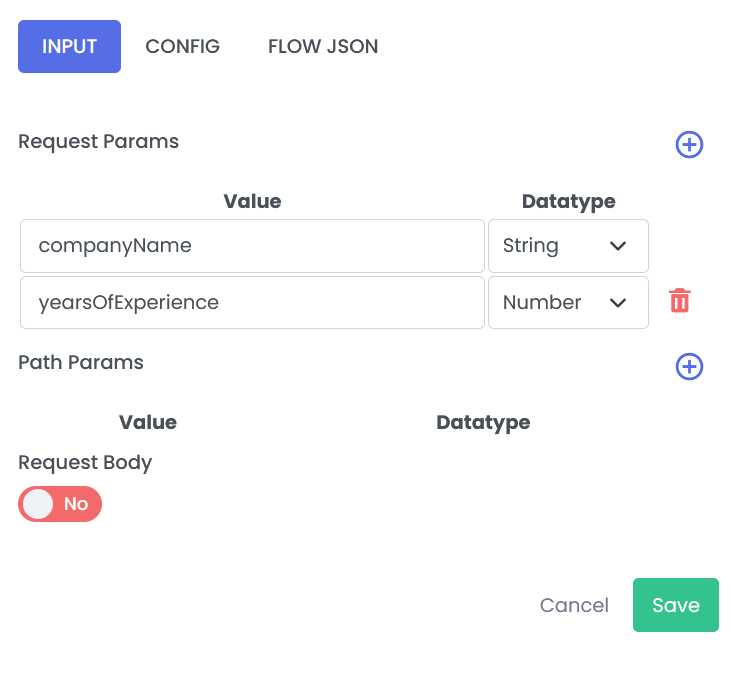

For Request params

1. Click the plus button on the right to add the fields
2. Name the appropriate request parameter name and the datatype
3. Click save

Fields	Description	Example
Value	Name of the parameter	companyName
Datatype	Datatype of the parameter	String
Value	Name of the parameter	yearsOfExperience
Datatype	Datatype of the parameter	Number

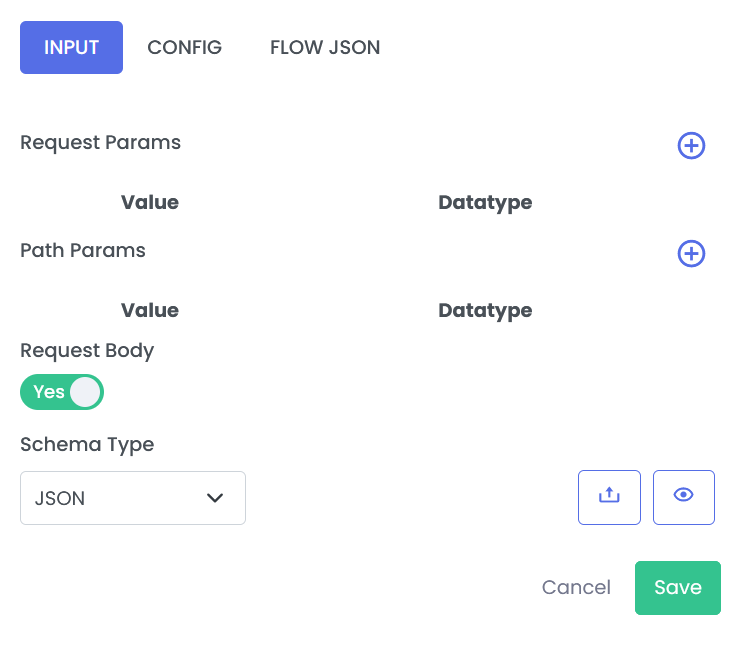

For Request Body (JSON)

1. Click the toggle button to validate request body
2. Select the schema type as JSON
3. Upload the JSON schema using the upload button
4. You can check the schema from the view button
5. Click save

Schema

{
	"title": "Customer",
	"type": "object",
    	"description": "",
    	"required": [
        	"id",
	        "name",
		"city",
        "country"
    ],
    "properties": {
        "id": {
            "type": "number"
        },
        "name": {
            "type": "string"
        },
        "city": {
            "type": "string"
        },
        "country": {
            "type": "string"
        }
    }
}

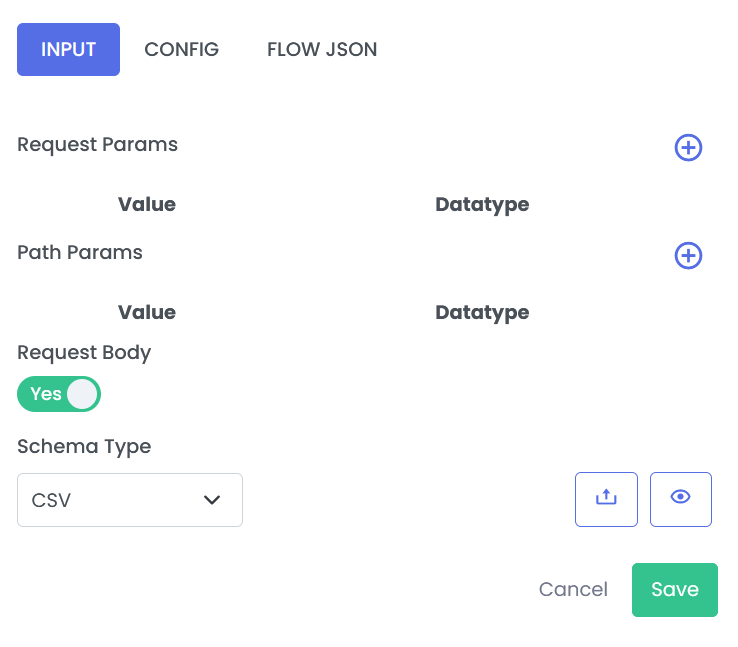

For Request Body (CSV)

1. Click the toggle button to validate request body
2. Select the schema type as CSV
3. Upload the CSV schema using the upload button
4. You can check the schema from the view button
5. Click save

Schema

<?xml version="1.0" encoding="UTF-8" ?>
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema">
    <xs:element name="root">
        <xs:complexType>
            <xs:sequence>
                <xs:element name="row" maxOccurs="unbounded" minOccurs="0">
		    <xs:complexType>
		        <xs:sequence>
			    <xs:element name="name" type="xs:string"/>
			    <xs:element name="id" type="xs:string"/>
			    <xs:element name="city" type="xs:string"/>
			    <xs:element name="country" type="xs:string"/>
		        </xs:sequence>
		    </xs:complexType>
	        </xs:element>
            </xs:sequence>
        </xs:complexType>
    </xs:element>
</xs:schema>
